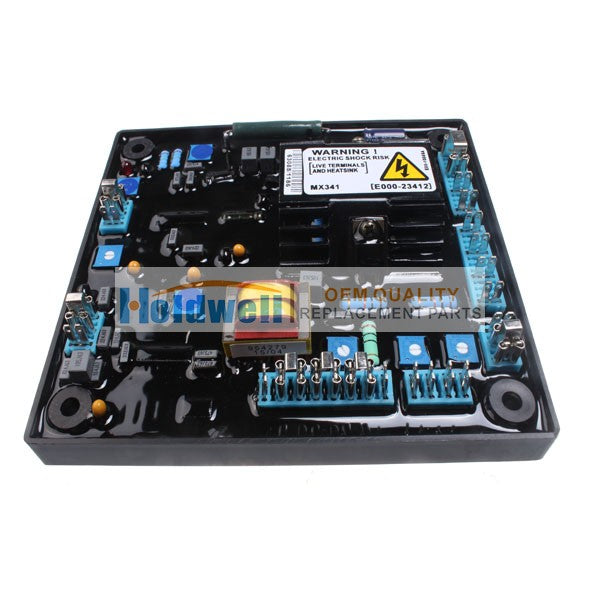

Holdwell Automatic Voltage Regulator AVR MX341 for Stamford

SPECIFICATION
SENSING INPUT:
Voltage: 190-264V ac max, 1 phase, 2 wire
Frequency: 50-60 Hz nominal
POWER INPUT (PMG):
Voltage: 140-220V ac max, 3 phase, 3 wire
Current: 3A/phase
Frequency: 100-120 Hz nominal
OUTPUT:
Voltage: max 120V dc
Current: continuous 2.7A Intermittent 6A for 10 secs.
Resistance: 15 ohms minimum
SOFT START RAMP TIME: 3 seconds
UNIT POWER DISSIPATION: 12 watts maximum
ANALOGUE INPUT:
Maximum input: +/- 5V dc
Sensitivity: 1v for 5% Generator Volts (adjustable)
Input resistance: 1k ohm
QUADRATURE DROOP INPUT:
10 ohms burden
Max. sensitivity: 0.07 A for 5% droop 0PF
Max. input: 0.33 A
OVER EXCITATION PROTECTION:
Set point: 75 V dc
Time delay: 10 seconds (fixed)

Brand: HOLDWELL®
Condition: New Aftermarket
